ARX154

Counterbalanced hand winch stacker COMPACT size capacity 100 kg

Ordinabile SI

Counterbalanced hand winch stacker COMPACT size capacity 100 kg è acquistabile per lotti da 1 unità.

Dettagli Prodotto

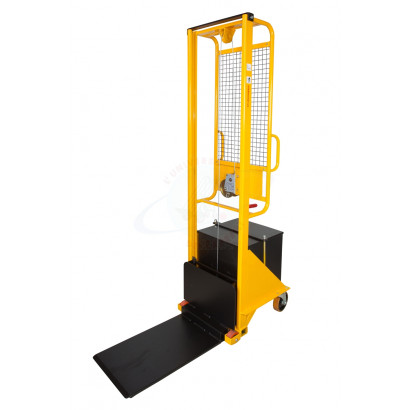

The hand winch stacker ARX154 is designed without fixed froks, which allows the operator to get closer to the loading / unloading position while the counterweight stabilizes the stacker.
ARX154 hand winch allows to lift the load with  a minimal effort up to 1600 mm .
A friction brake allows to stop the load at any lifting height from 0 up to 1600 mm
The load can only be lowered through a direct operation  on the hand winch
Push handle
Textile cored stranded rope with  breaking load kg 1000.

COMPLIANT TO CE RULES

DESCRIPTION
Lifting Hand winch
Drive system Pedestrian
Capacity kg 100
Load axle to end of plate mm 540
Wheelbase mm 500
SIZES
Lift height mm 1600
Lowered mast height mm 1985
Raised mast height mm 1985
Lowered loading plating height mm 10
Total length mm 950
Lenght to face of forks  mm 450
Total width mm 550

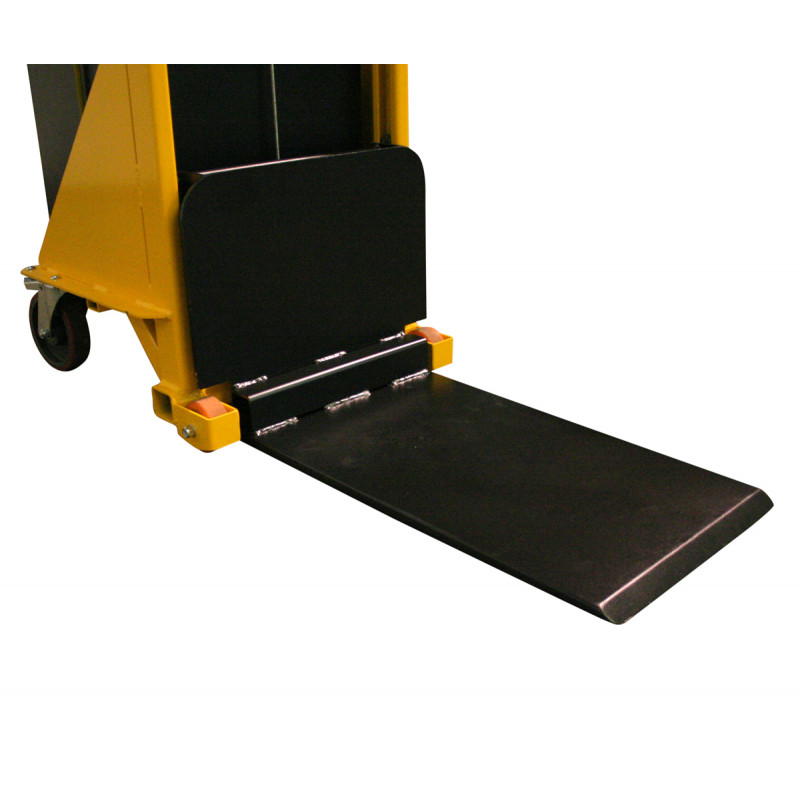

Loading plate length mm 500
Loading plate width mm 380
Loading plate thickness mm 20
Turning radius mm 550
Height of push handles mm 260
WEIGHT AND WHEELS
Weight kg 260
Number of wheel (front / rear) 2/2
Front rollers 80x40
Steering wheels, cast iron / poliurethane 1 with brake 150x40
Front working aisle mm 460
Rear wotking aisle mm 430

Informazioni Aggiuntive

Cod. ARX154
GTIN/EAN No
Fornito Montato - Pronto all'uso
Weight kg 260
Plate No
Load Capacity 100
Diametro Ruota in mm 150
Type of Wheel: -
Colour Yellow RAL028
Produttore Carmeccanica
Country of Manufacture Italia
Garanzia 5 Years
Conformità CE
Lead Time Su Richiesta
