TNBEXS 12/32

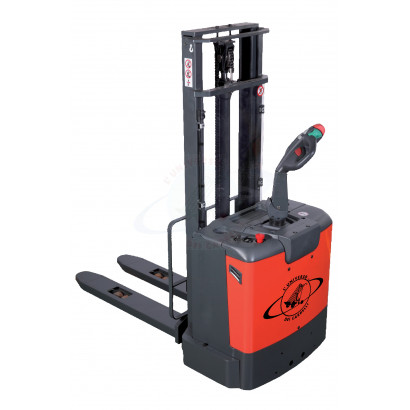

Self propelled stacker

Rider platform
Folding side supports
Crushproof frame with extruded section
Plexiglass see-through mast
Direction handle on Thrust bearings

Ordinabile Prodotto al momento Esaurito

			TNBEX
			12/32
FEATURES
Capacity	Q	Kg	1.200
Load centre distance	C	mm	600
Distance load axle to end forks	X	mm	684
Wheelbase	Y	mm	1181
Operator type			Pedestrian
Rider platform and protective arm			YES
WEIGHT
Service weight		kg	960
Axle load laden front		kg	820
Axle load unladen front		kg	720
Axle load laden rear		kg	1310
Axle load unladen rear		kg	210

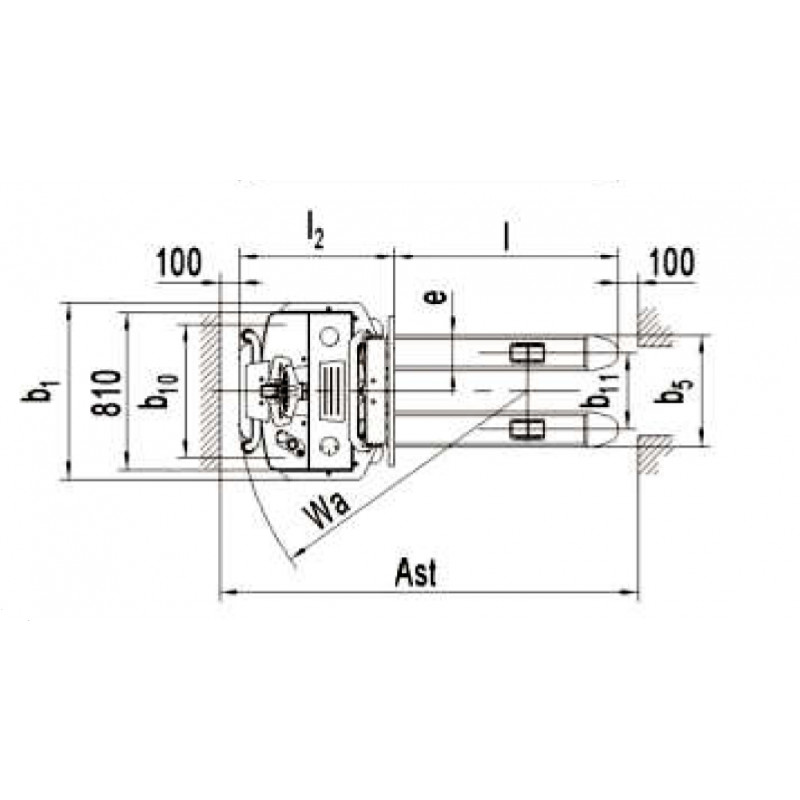

SIZES
Lifting height	h3	mm	3200
Full free lift		mm	120
Forks length	l	mm	1150
Distance between fork arms	b5	mm	570
Fork dimensios width x thickness	e/s	mm	180x60
Overall length (excluding rider platform)	l1	mm	1845
Length to face of forks	l2	mm	695
Overall width	b1	mm	912
Height, mast lowered	h1	mm	2096
Height, mast extended	h4	mm	3975
Turning radius	Wa	mm	1400
Height of tiller MAX/min	h14	mm	1420/985
Lowered fork height	h13	mm	81
Groung clearance, cente of wheelbase	m2	mm	26
Aisle width pallet 800x1200	AST	mm	2215
PERFORMANCES
Travel speed laden / unladen		Km/h	6,0/6,0
Lift speed laden / unladen		mm/s	0,105/0,15
Lowering speed laden / unladen		mm/s	0,13/0,11
Gradeability laden / unladen		%	6/12
FRAME
Wheels number front / rear (M=driving wheel)		nr	2+1M/4
Tyres: stabilizers wheels		mm Ø	150x54
Driving wheel		mm Ø	252x8
Nylon front rollers		mm Ø	80x70
Wheelbase	y	mm	1.196
Tread, front	b10	mm	686
Tread, rear	b11	mm	390
Electric motor
Drive motor power s2 60min		Kw	1,3
Lift motor power s3 15%		Kw	2,2
Drive control			AC speed control
Battery		V/Ah	24/210
Battery weight		Kg	200
CHARGER
Charger		V-A	24-40
