Dettagli Prodotto

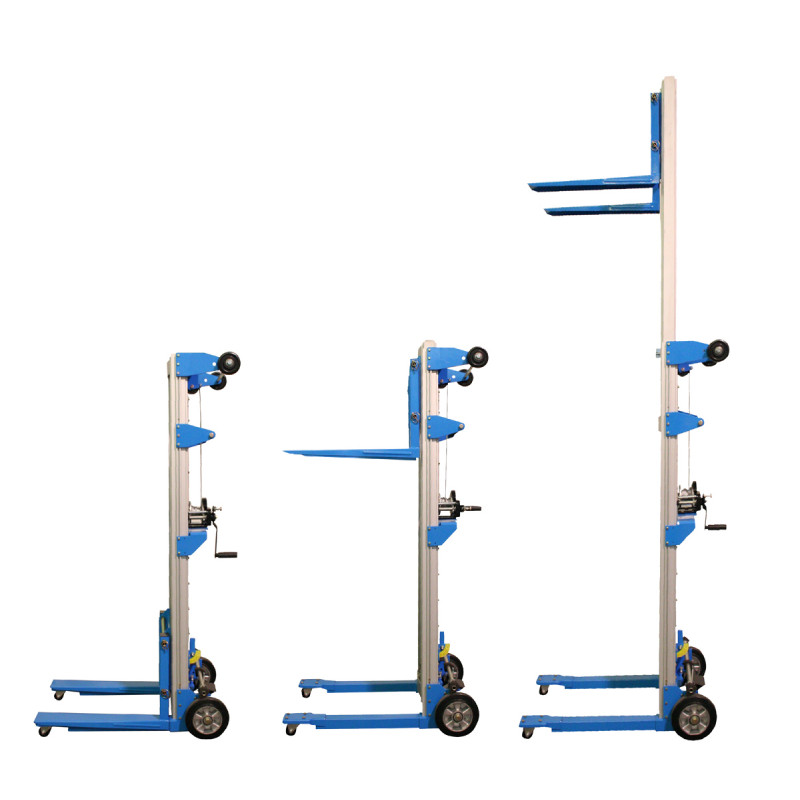

Aluminium hand winch stacker with loading plate
Portable assembly frame, which can be easily mounted or dismounted by 1 operator. Easily operated , even in confined spaced
The stacker can lift up to 180 Kg to an height of 2.500 mm (with forks down) o 3.100 with forks up.
The load can be raised with a minimal effore by turning the hand winch crank clockwise. The forks can be stopped at any height with the friction brake
Moves easily through the swivel easily, which can be blocked with a parking brake
COMPLIANT TO CE RULES
| Capacity | kg 180 |
| Total length | mm 870 |
| Total width | mm 600 |
| Lowered mast height | mm 1715 |
| Raised mast height | mm 3000 |
| Loading plate lenght | mm 570 |
| Loading plate width | mm 530 |
| Loading plate thickness | 20/10 |
| Lowered forks height | mm 90 |
| lift height forks down | mm 2500 |
| Rear wheel | Ø 200 |
| Front roller | Ø 50 |
| Weight | kg 66 |
Informazioni Aggiuntive
| Cod. | ARTARG2/25GP |
|---|---|
| GTIN/EAN | 8053853158215 |
| Supplied | Fully assembled |
| Weight kg | 100 |
| Plate | No |
| Load Capacity Kg | 180 |
| Casters diameter mm | No |
| Type of Wheel: | Rubber |
| Colour | Blu RAL5015 |
| Produttore | Carmeccanica |
| Country of Manufacture | Cina |
| Warranty duration | 1 Year |
| Conformity | CE |
| Lead Time | 15 giorni |
