Hand winch stacker with automatic friction brake

Capacity Kg 200
Weight Kg.97
Lifting height mm 1.600
Cable breaking load 1.000 kg
Push handles

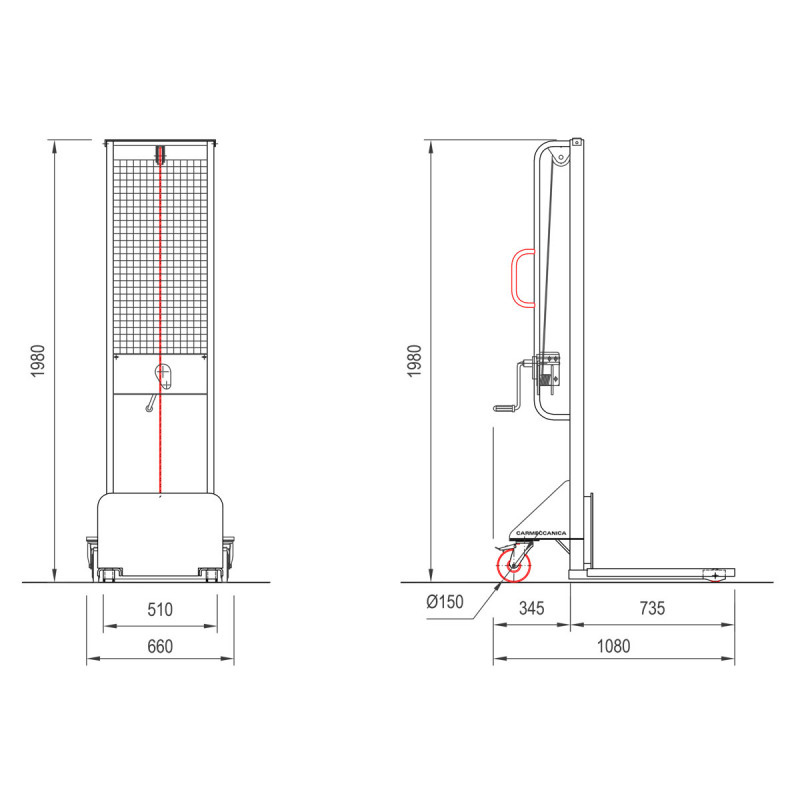

Sizes:
Length mm 1150
Total width mm 660
Minimum overall height mm 2005
Maximum overall height mm 2005
Length of fixed legs mm 600
Forks:
Length mm 650
Width mm 80
Thickness mm 50
Inner distance between forks mm 200
2 back wheels in Nylon/polyurethane Ø 150
1 with brake
2 Nylon front rollers Ø 80x40
Turning radius Wa mm 930
COMPLIANT TO CE RULES
