Dettagli Prodotto

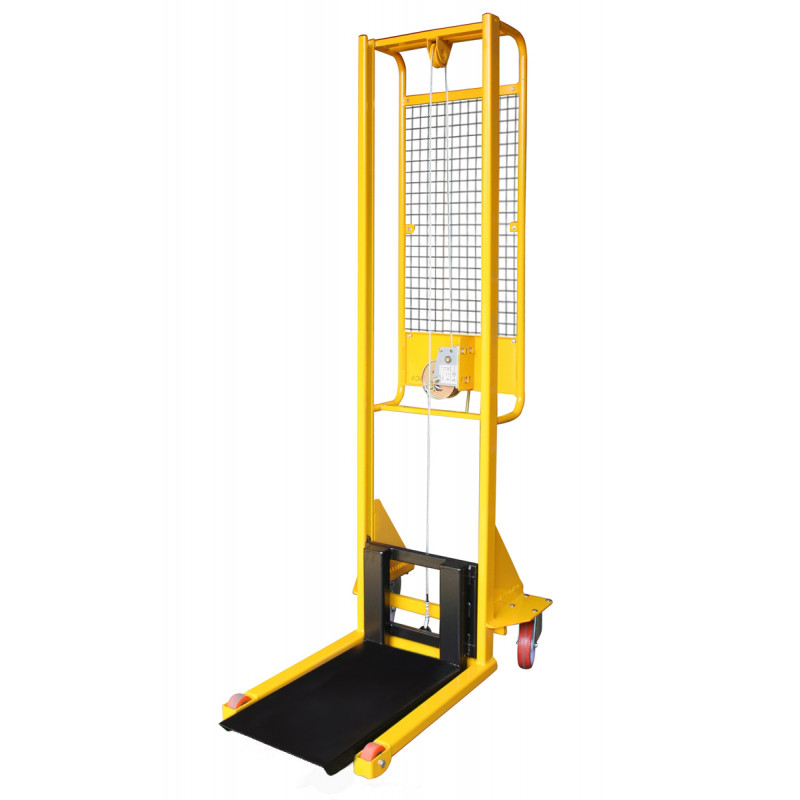

Push handle.
Certified hand winch with capacity 500 kg made by AL.KO with authomatic clutch
Textile cored threestranded rope with breaking load kg 1000.
The lowering of the load can only occur if the operator turn the lever anti-clockwise
COMPLIANT TO CE RULES
| DESCRIPTION | |
| Rising system | Hand winch |
| Drive | Pedestrian |
| Capacity | kg 200 |
| Load axle to end forks | mm 560 |
| Wheelbase | mm 980 |
| SIZES | |
| Lift height | mm 1600 |
| Overall Height, fork lowered | mm 1980 |
| Overall Height, fork raised | mm 1980 |
| Lowered plate height | mm 90 |
| Overall length | mm 1100 |
| Length to face of forks | mm 450 |
| Total width | mm 670 |
| Plate length | mm 700 |
| Plate width x thickness | mm 570x30 |
| Ground clearance, centre of wheelbase | / |
| Inner distance between forks | / |
| Turning radius | mm 950 |
| Height of push handles | mm 1250 |
| WEIGHT AND WHEELS | |
| Service weight | kg 99 |
| number of wheels (front / rear) | 2/2 |
| Front rollers | 80x40 |
| Rear swivel casters (1 with brake) | 150x45 |
| Thread (front) | mm 450 |
| Thread ( rear) | mm 550 |
Informazioni Aggiuntive
| Cod. | ARTARG2P |
|---|---|
| GTIN/EAN | 8053853154910 |
| Supplied | Fully assembled |
| Weight kg | 86 |
| Plate | No |
| Load Capacity Kg | 200 |
| Casters diameter mm | 150 |
| Type of Wheel: | Nylon/Poliuretano |
| Colour | Grey RAL7042 |
| Produttore | Carmeccanica |
| Country of Manufacture | Italia |
| Warranty duration | 5 Years |
| Conformity | CE |
| Lead Time | 15 giorni |
