Hand winch stacker capacity 80Kg lifting height 1,50 mt.
Being a handy and functiona stacker ARG1XP-A allows the user to lift loads up to 80 kg to an height of 1500 mm.
Through the hand winch the load can be lifted with a minimum effort and the authomatic clutch the load can be blocked at any point within the lifting range.
The load can only be lowered through a direct operation on the hand winch.
Certification CE issued by the manufacturer
| TECHNICAL FEATURES | |
| Lift type | hand winch |
| Drive | Pedestrian |
| Capacity | kg 80 |

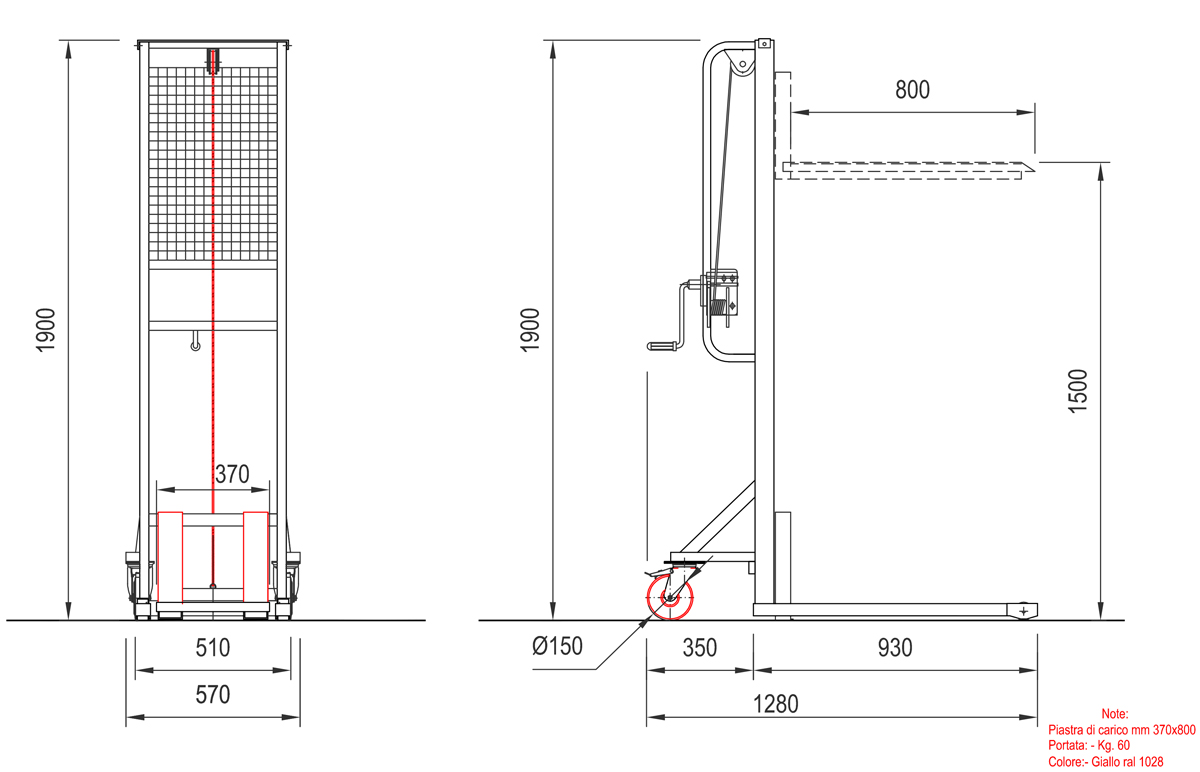

| SIZES | |
| Lift height | mm 1500 |
| Overall height - forks lowered | mm 1900 |
| Overall height - forks lifted |
mm 1900 |
| Overall length | mm 1280 |
| Overall width | mm 570 |
| Plate length | mm 800 |
| Plate width | mm 370 |
| Plate thickness | mm 30 |
| WEIGHT AND WHEELS | |
| Service weight | kg 60 |
| Number of wheels (front / rear) | 2/2 |
| Front rollers | 80x40 |
| Rear casters | 150x45 |
Informazioni Aggiuntive
| Cod. | ARTARG1XP-A |
|---|---|
| GTIN/EAN | No |
| Supplied | Fully assembled |
| Weight kg | 60 |
| Plate | No |
| Load Capacity Kg | 60 |
| Casters diameter mm | 150 |
| Type of Wheel: | No |
| Colour | Yellow |
| Produttore | Carmeccanica |
| Country of Manufacture | Italia |
| Warranty duration | 2 Years |
| Conformity | CE |
| Lead Time | Su Richiesta |
