Dettagli Prodotto

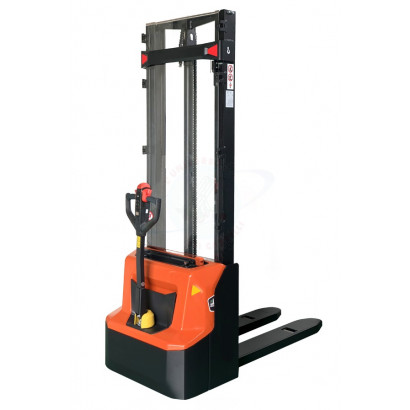

Self propelled stackers mm 2.900 Capacity 1.200 Kg
|
|
UM |
TNBCS 12/29 |
|
|
Power |
|
|
BATTERY |
|
Drive |
|
|
Pedestrian |
|
Capacity |
Q |
Kg |
1.200 |
|

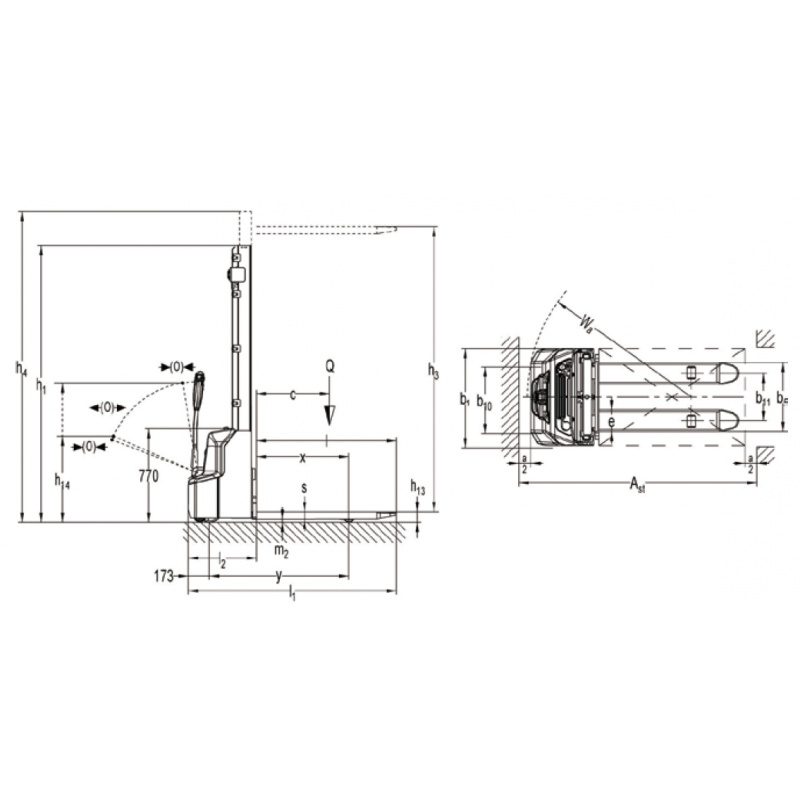

Load centre distance |
C |
mm |
600 |
|
Load axle to end forks |
X |
mm |
760 |
|
Wheelbase |
Y |
Mm |
1147 |
|
WEIGHT |
|
|
|
|
Service Weight |
|
KG |
542 |
|
Axle load, laden front / rear |
|
KG |
580 / 1240 |
|
Axle load, unladen front / rear |
|
KG |
450/170 |
|
WHEEL |
|
|
|
|
Material |
|
|
POLIURETANO |
|
Swivel poliurethane casters |
Ø x w |
mm |
100x50 |
|
Front roller |
Ø x w |
Mm |
84x93 |
|
Drive Wheel |
Ø x w |
Mm |
210x70 |
|
Number of wheel |
|
|
1x + 1/2 |
|
Thread, rear |
b10 |
mm |
550 |
|
Thread, front |
b11 |
mm |
400 |
|
SIZE |
|
|
|
|
Overall height |
h1 |
Mm |
1930 |
|
Height, mast extended |
h4 |
mm |
3337 |
|
Lift height |
h3 |
Mm |
2814 |
|
Lowered fork height |
h13 |
mm |
86 |
|
Raised fork height |
h3+h13 |
|
2900 |
|
Handl height min / max |
h14 |
mm |
710/1150 |
|
Overall length |
l1 |
mm |
1710 |
|
Length to face of forks |
l2 |
mm |
560 |
|
Width |
b1 |
mm |
800 |
|
Width over forks |
b5 |
mm |
570 |
|
Single fork size (Length/width/ thickness) |
l/e/s |
mm |
1150 / 180 / 60 |
|
Ground clearance, centre of wheelbase |
m2 |
mm |
26 |
|
Working aisle pallet 1000x1200 |
AST |
mm |
2197 |
|
Working aisle pallet 800x1200 |
AST |
mm |
2145 |
|
Turnign raiuds |
Wa |
mm |
1350 |
|
Battery |
2x 12/106Ah |
Informazioni Aggiuntive
| Cod. | TNBCS 12/29 |
|---|---|
| GTIN/EAN | 8053853158314 |
| Supplied | Fully assembled |
| Weight kg | 457 |
| Plate | No |
| Load Capacity Kg | 1200 |
| Casters diameter mm | 200 |
| Type of Wheel: | Nylon/Poliuretano |
| Colour | Red |
| Produttore | Carmeccanica |
| Country of Manufacture | |
| Warranty duration | Legale |
| Conformity | CE |
| Lead Time | 7 giorni |
